Quadrant

Navigation

A navigating instrument of reflection, reading to minutes and graduated so as to measure angles up to 90 deg. (See engraving.)

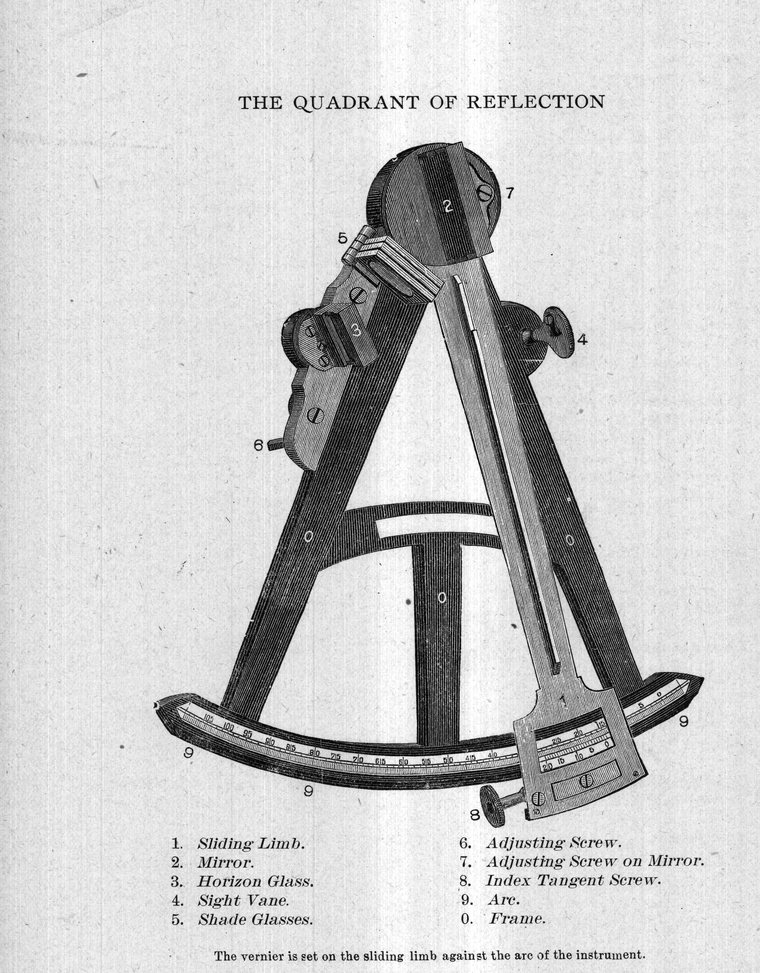

The quadrant of reflection, with its parts named
The quadrant of reflection, with its parts named
